Brand: Nangong, model: NGTT07-25/61, load capacity: 7 tons, frame size: 6.1 * 2.54 meters, net weight: 3000KG, color: fire red;

Detailed parameters of 7t fire pump trailer:

1. This vehicle is used for the transportation of tracked fire trucks, with a load-bearing capacity of 7 tons. The main beam of the platform is welded with section steel, and the guardrail of the carriage is made of plate type. The bottom plate of the carriage is paved with 4mm patterned plates. The width of the bearing area inside the carriage is 2.54 meters, the length of the bearing area is 6.1 meters, and the height is about 2.375 meters;

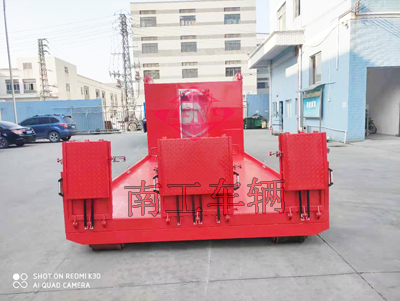

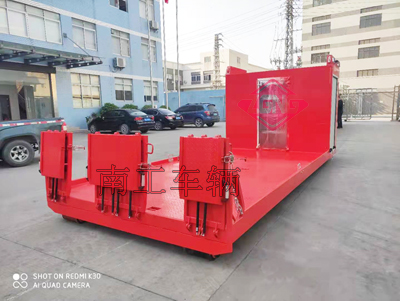

2. The rear of the vehicle is equipped with three sets of overturned ladders (frame structure), which are convenient for crawlers of different widths to climb and fall on their own. The bottom of the ladder is designed with heavy-duty guide wheels, and the front is equipped with a traction frame for easy transportation and lifting;

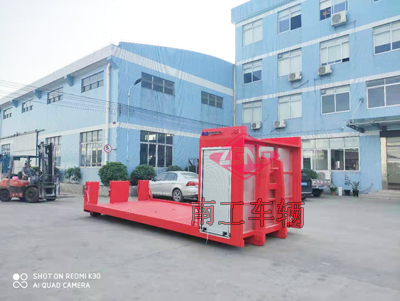

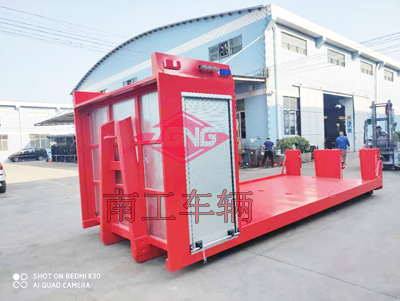

3. Three equipment boxes are equipped above the front of the vehicle body, with a length of 0.68 meters, a width of 0.75 meters, and a height of about 1.7 meters. There are two layers of adjustable height layers inside, and the surface material of the layers is aluminum alloy;

4. Install aluminum alloy roller gates in the middle and left and right sides of the front of the car body;

5. Two LED lighting lights are installed on the top and inside of the cabin, and two strobe warning lights are added above the front;

6. Equipped with 24V plugs at the front of the vehicle;

7. Color: The vehicle color is Fire Red;

The 7t fire pump trailer is non-standard customized for Nangong vehicles, featuring small size, light weight, convenient operation, maintenance free, long service life, etc.

Application: Widely used in municipal engineering, municipal roads, easy to use, non-standard customization can be processed and produced according to customer requirements.
