1. The electric track vehicle weighs 10 tons, with a board width of 2.2 meters, a length of 4 meters, and a height of approximately 0.55 meters. The main beam of the platform is made of 20 gauge steel, and the side beam is made of 20 gauge channel steel, with a surface paved with a 4mm flat plate;

2. This car adopts a 5KW, 48V low-voltage DC motor, equipped with a deceleration system;

3. Adopting 48V 200A lithium battery, with large capacity and long service life;

4. Track spacing is 1.95 meters, with a speed of 0-3KM/H;

5. Equipped with a 48V charging intelligent electric pile, connected to the battery using a contact type;

6. Color: Sky blue;

Design, research, development, and manufacturing of 10 ton low-voltage lithium-ion electric rail cars for Nangong vehicles. Nangong electric flat cars have excellent quality, high cost-effectiveness, non-standard customization, and direct sales from manufacturers,

Application: Used for short distance transportation between factory and factory areas, as well as between workshops. Tracks need to be laid for walking, and two driving methods, remote control and wiring, are used for fast and safe transportation.

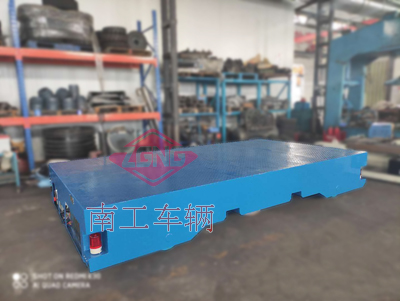

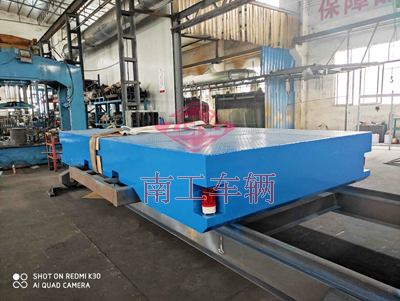

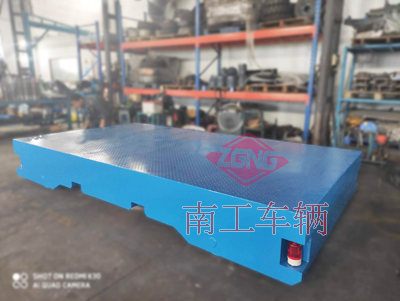

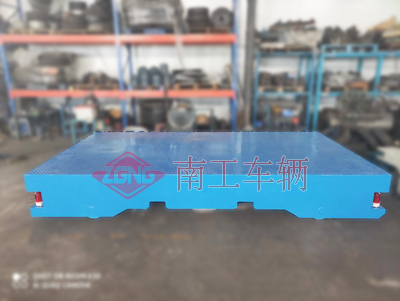

10噸電動(dòng)軌道車1I.jpg 10噸電動(dòng)軌道車2I.jpg 10噸電動(dòng)軌道車3I.jpg 10噸電動(dòng)軌道車5I.jpg
