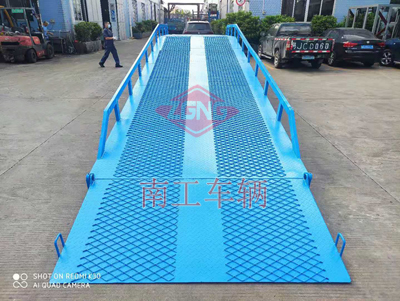

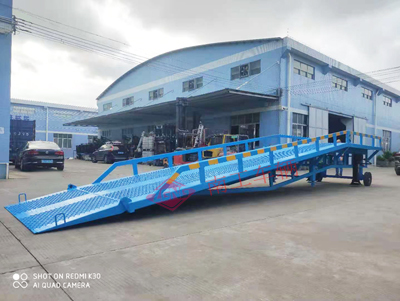

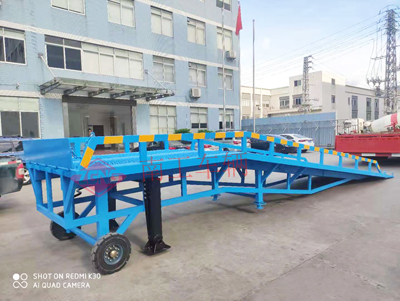

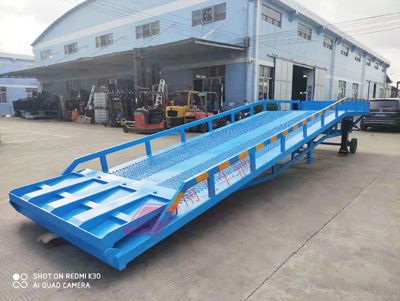

Brand: Nangong, model: NGRAT10M10/21-2S, load capacity: 10 tons, specification: 10 * 2.1 meters, net weight: 2.19 tons, color: blue.

Detailed parameters of 10 ton heavy-duty mobile boarding bridge:

1. Rated load 10T;

2. The table size is 2.1M wide, the platform length is 2.54 M, the slope length is 6.32 M, the rear transition plate length is 1 M, the front lap plate length is 0.3 M, the total length is about 10.1 meters, and the height is 1.2M-1.6M. The surface is paved with 4mm patterned plates and diamond shaped anti-skid nets;

3. One set of mechanical support legs for the boarding bridge and semi trailer (with a load of 28T);

4. The main beam is made of 16 # steel, the auxiliary beam is made of 10 # steel, and the guardrail is made of 8 # steel;

5. Equipped with two 500-8 solid tires;

6. Color: Blue

The 10 ton heavy-duty mobile boarding bridge is processed and produced by Nangong for a long time. It can be towed by forklifts and can be processed and produced in different sizes and sizes according to customer requirements. Nangong's boarding bridge has a heavy load, low cost, and fast delivery.

Application: The mobile boarding bridge is mainly used as a bridge between the ground and the freight car, in conjunction with forklift and other handling equipment, making it easy for goods to be loaded and unloaded through the transport vehicle. The height of the boarding bridge can be freely adjusted through the adjustment plate, achieving seamless docking with the car and ensuring the safe use of loading and unloading.
